MCP

Model Context Protocol (MCP) configurations describe how the platform safely connects copilots to real systems: tools and APIs. An MCP defines what the AI is allowed to do, where it can do it, and who is allowed to use it, so that every interaction stays grounded in context.

At runtime, the synthesis engine assembles MCPs, agents, characters, assets, and collections into a single, signed assembly that describes exactly what a given role can access in a given context.

MCP Config Model

The MCPConfig schema defines how an MCP is represented in configuration, APIs, and in the Bifrost admin tool:

MCPConfig {
  mcp_id: string (required)
  name?: string
  description?: string
  guidelet?: string
  mcp_type?: "streamableHTTP" | "SSE" | "stdio"
  mcp_uri?: string
  auth_type?: string
  auth_uri?: string
  masks?: { [key: string]: string[] }
  tool_permission_map?: { [key: string]: string[] }
  role_permissions?: { [key: string]: "Allow" | "Deny" }
  tools?: { [key: string]: string[] }
  parameters?: { [key: string]: string[] }
  created_at?: number
  updated_at?: number
  customer_id?: string
}

System

Tools, Scopes, and Masks

Tools are the individual capabilities an MCP exposes to the AI: API calls, database operations, actions in third-party systems, or even entire remote workflows.

In Bifrost → MCP → Tools & Scopes, you define three related concepts:

tool_permission_map

tool_permission_map declares the full set of tools this MCP knows about and the authorization scopes required to call each tool.

"tool_permission_map": {
  "getPatientRecord": ["ehr.read.{fragment}"],
  "updatePatientAllergies": ["ehr.write.{fragment}"],
  "listAppointments": ["ehr.read.schedule"]
}

• Keys are tool identifiers the LLM can call.
• Values are the OAuth scopes or permissions needed to run that tool.
• {fragment} is a placeholder that will later be replaced by more specific scope fragments from bindings (e.g., s0034 for a particular sensor or patient).

masks

MCPs often support many tools, but a given situation only needs a focused subset. Masks are named filters that carve out those subsets.

"masks": {
  "read_only": ["getPatientRecord", "listAppointments"],
  "allergies_admin": ["getPatientRecord", "updatePatientAllergies"]
}

• Each mask name maps to a list of tools.
• Masks are applied by MCPBindings and binding rules to narrow what flows up through the graph.
• Multiple masks can be combined; the effective tool set is the intersection of:
  • tools allowed by the MCP for a role,
  • tools included in the selected masks,
  • tools that survive binding rules across assets and collections.

Parameters

Parameters narrow where and how a tool can act. They define allowed value sets for tool inputs, especially sensitive identifiers or resource selectors.

"parameters": {
  "patient_id": ["P12345", "P67890"],
  "line_sensor_id": ["s0034", "s0035"]
}

Each entry:

• Uses a parameter name (e.g., patient_id, line_sensor_id) as the key.
• Lists the allowed values for that parameter within this MCP.
• Is expressed as strings at the MCP layer so that bindings can refine or override them later.
• Typically an MCP definition does not have default values for the parameters. Instead the lists are left empty and only populated later through MCPBindings to assets and collections.

Typical uses:

• Regulatory boundaries – limit patient_id to a subset tied to a unit, shift, or consent.
• Operational focus – limit line_sensor_id to sensors in a given cell or line.

In Bifrost, the Parameters section lets you add parameter names and initial values (optional) that will be narrowed by MCPBindings at the asset or collection level.

Roles and Tools

Roles describe who is acting. In the broader architecture, roles are a core object (e.g., operator, technician, nurse, doctor) and synthesis always happens for exactly one role at a time.

MCPs plug into this model with two fields: role_permissions and tools.

role_permissions

role_permissions is a coarse but powerful gate:

"role_permissions": {
  "nurse": "Allow",
  "doctor": "Allow",
  "patient_advocate": "Deny"
}

• "Allow" means this role can use this MCP subject to tools, masks, and bindings.
• "Deny" means this role cannot access this MCP at all, regardless of other configuration.

It's the first line of control: if a role doesn't belong near a system, you don't expose the MCP at all.

tools

The tools map then refines what an allowed role can actually do:

"tools": {
  "nurse": ["getPatientRecord", "listAppointments"],
  "doctor": ["getPatientRecord", "updatePatientAllergies", "listAppointments"]
}

Together with role_permissions, masks, and binding rules, this produces a finely tuned, understandable policy:

• role_permissions: Is this MCP even visible to the role?
• tools[role]: Which tools are conceptually appropriate?
• masks and bindings: Which of those tools are in scope for this asset, collection, or relationship?

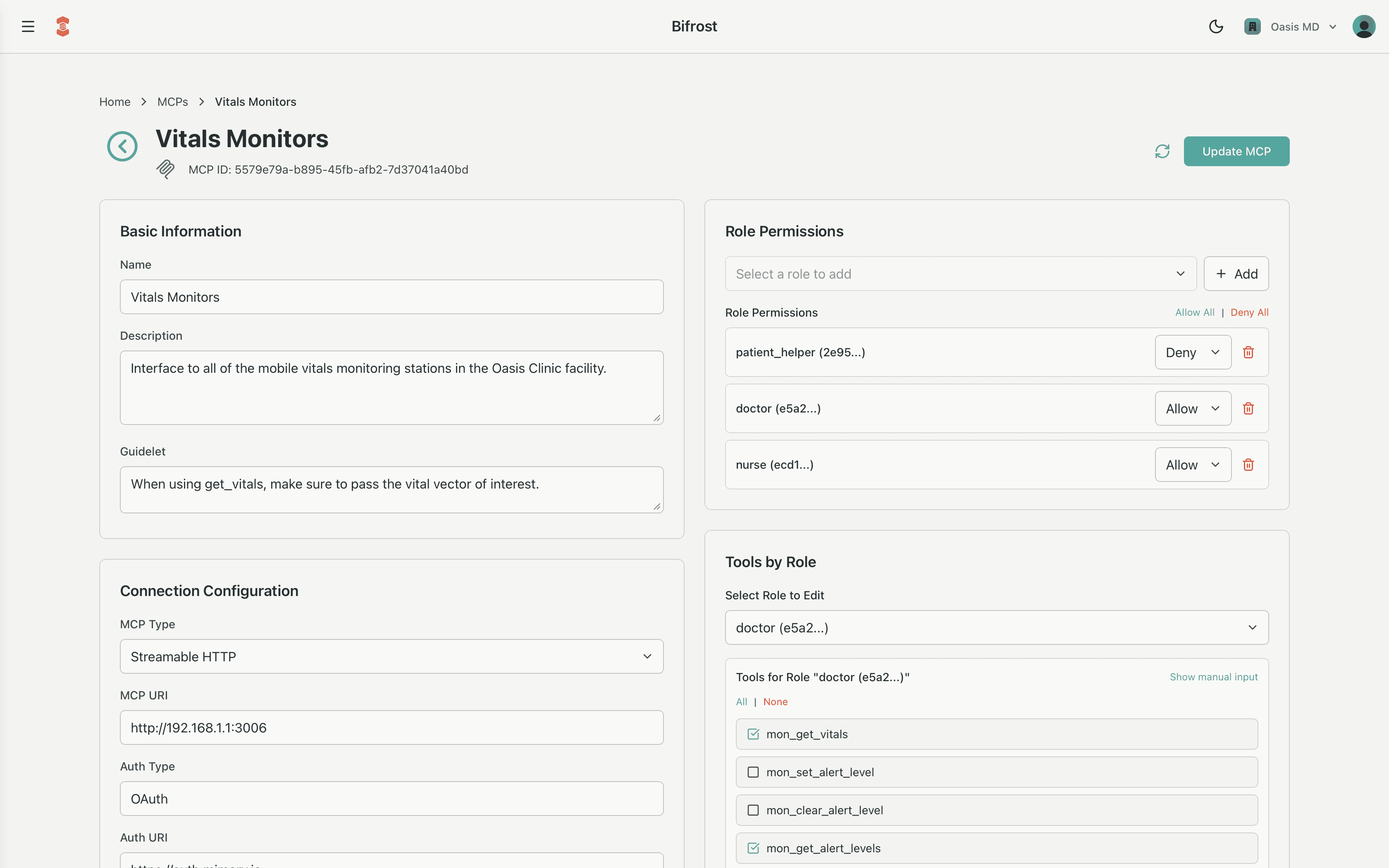

In Bifrost, the Roles & Tools section usually allows:

• Selecting roles for the MCP.
• Choosing which tools each role can see.

Guidelets

guidelet are composable context on top of the raw configuration. It's a place to encode how the tools in this MCP should be used and what the AI should prioritize when it calls these tools. These should be short and focused, similar to a Claude Skill, and are especially useful when using sub-agents.

Guidelets give you a mechanism to add to the system prompt to make interaction with this MCP more robust and reliable.

How Bifrost Brings It Together

When you configure an MCP in Bifrost, you're essentially answering four questions:

1. What system is this?
   • mcp_type, mcp_uri, auth_type, auth_uri
2. What can it do, and under which scopes?
   • tool_permission_map, masks
3. Who can use it, and with which tools?
   • role_permissions, tools
4. Where and how should it act?
   • parameters, plus later bindings and scope fragments
   • guidelet to steer behavior and expectations

The result is an MCPConfig that slots cleanly into the broader assembly process, so that every copilot session is aware of the moment, governed by design, and traceable end-to-end.
